Description

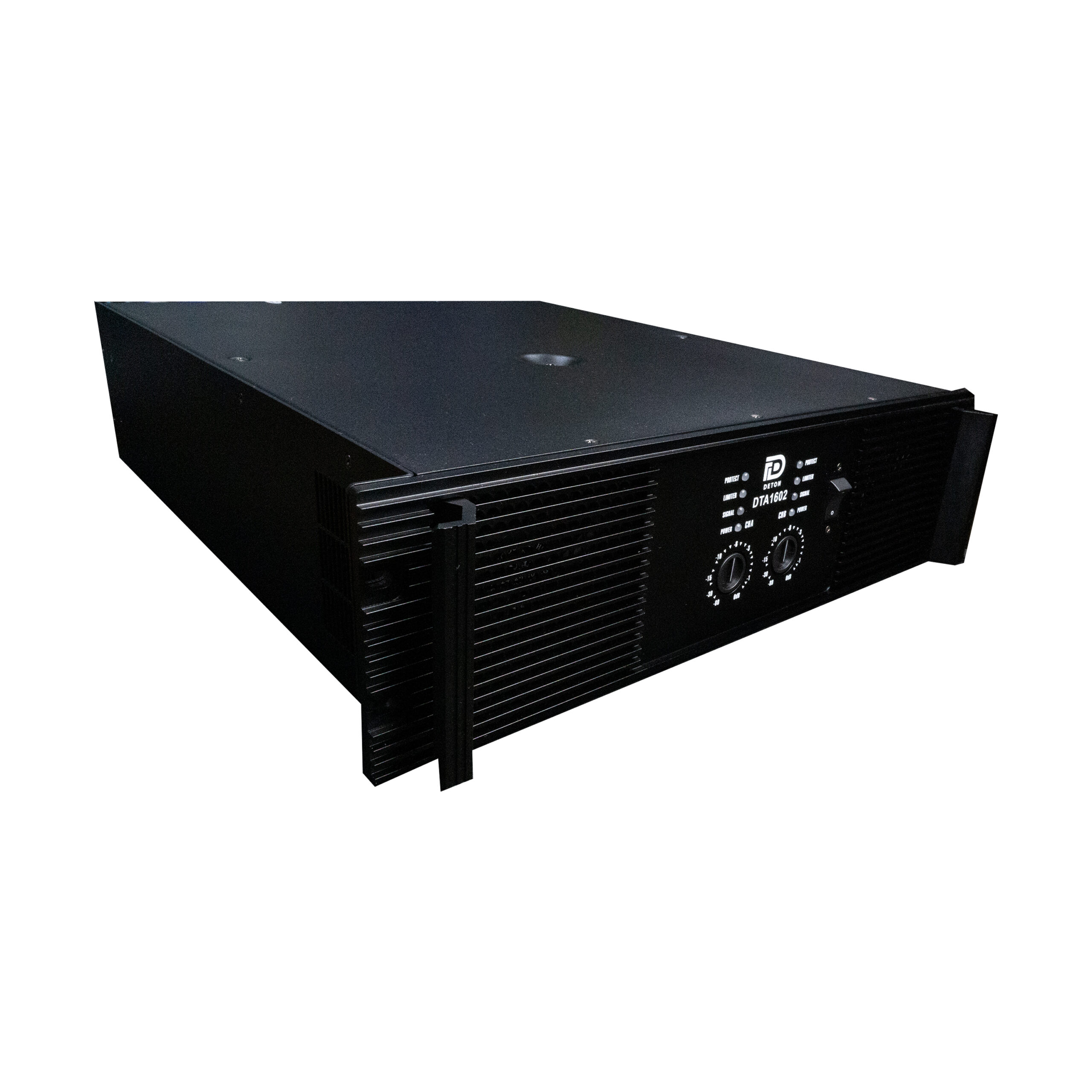

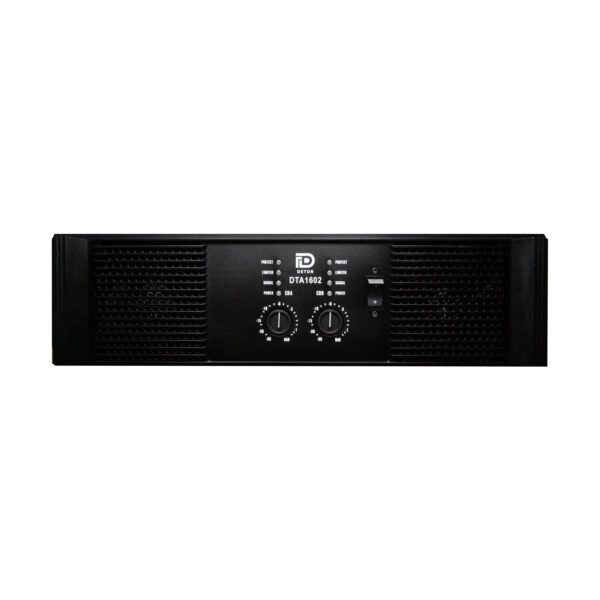

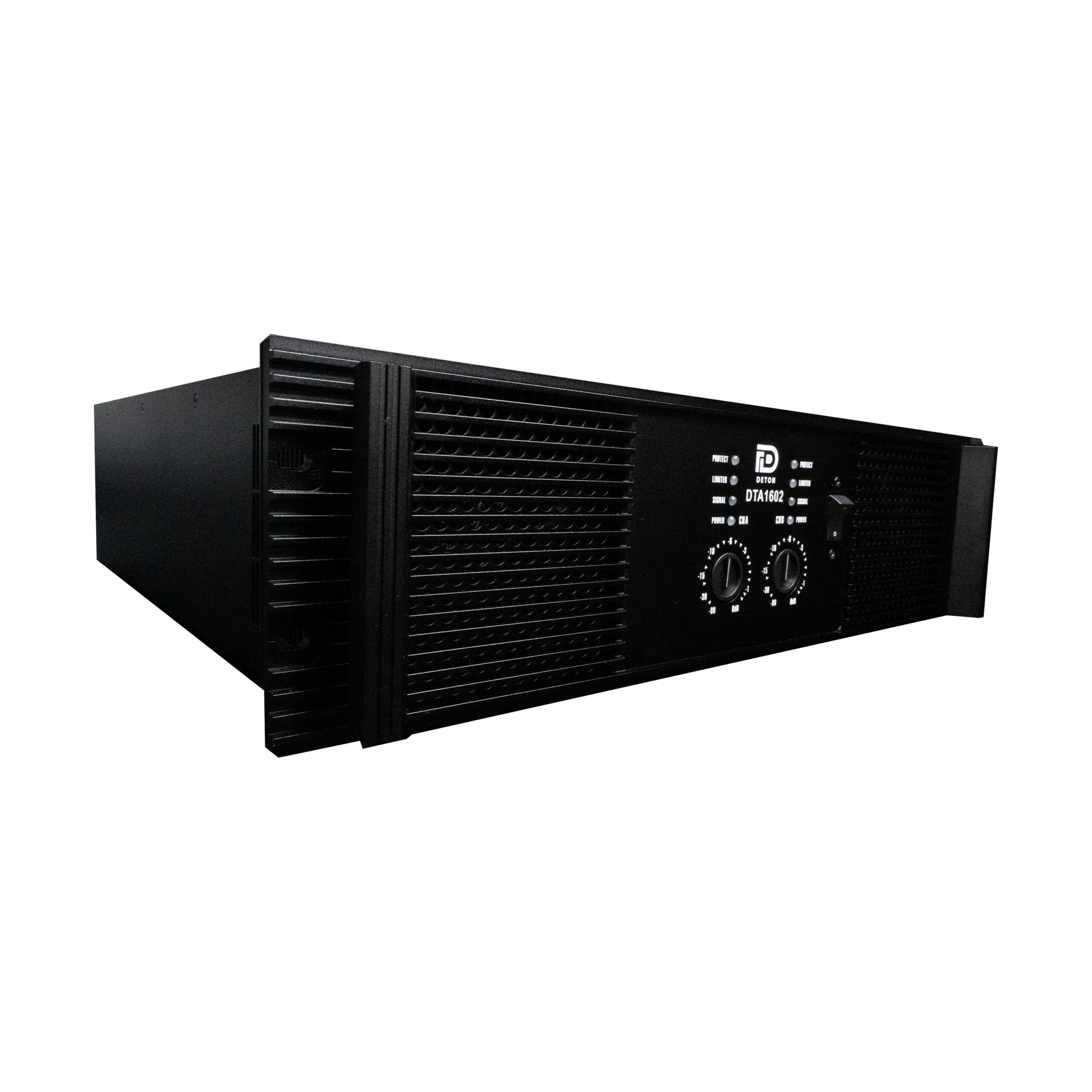

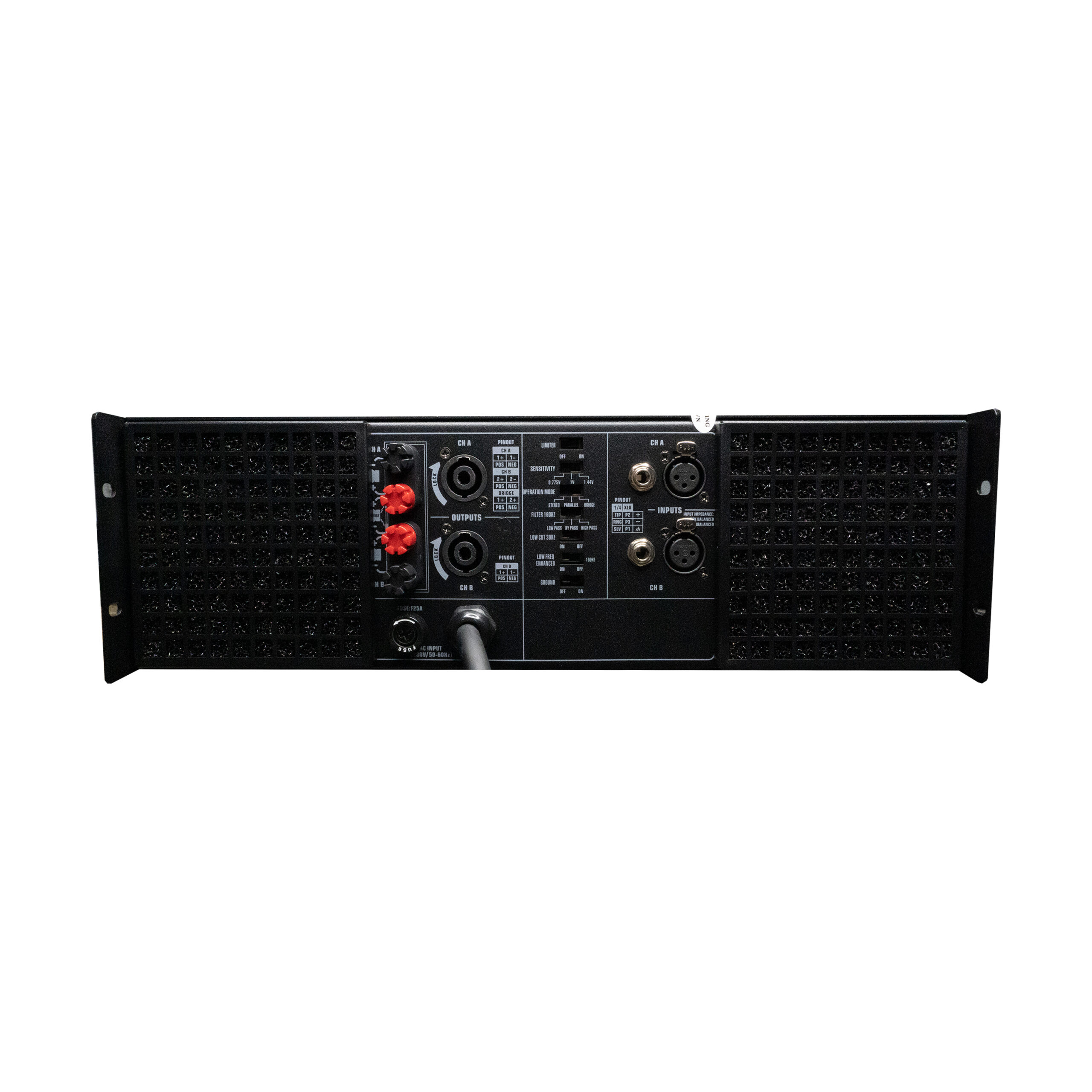

DETON DTA 1602 – 2 Channel Class H Power Amplifier

The DETON DTA 1602 is a high-performance 2 channel Class H power amplifier designed for demanding audio environments. Part of the DAM & DTA series, this amplifier offers powerful output, reliability, and efficiency—making it ideal for clubs, live events, and professional touring systems.

Equipped with a pure copper heavy-duty toroidal transformer and high-quality electronic components, the DTA 1602 ensures stable performance and consistent power delivery. The Class H circuit design enhances efficiency while maintaining excellent audio quality.

With advanced heat dissipation and four cooling fans, along with multiple protection systems, this amplifier is built for long-term operation with minimal failure risk.

Key Features

• 2 channel Class H professional power amplifier
• High power output up to 2×2600W
• Pure copper toroidal transformer for stable performance
• Advanced Class H circuit design for efficiency
• Multiple protection systems for safe operation
• Efficient cooling with four high-speed fans
• High damping factor for better speaker control
• Designed for dual top and subwoofer setups

Technical Specifications

• Model: DTA 1602
• Channels: 2 Channel Class H
• Frequency Response: 5 Hz – 30 kHz (±0.5 dB)
• Power Output:
  • 8Ω Stereo: 2 × 1300W
  • 4Ω Stereo: 2 × 1980W
  • 2Ω Stereo: 2 × 2600W
  • 8Ω Bridge Mode: 3600W
• THD+N: Same as 1200A
• S/N Ratio: >102 dB
• Damping Factor: >600
• Input Sensitivity: 0.8V / 1.6V
• Input Impedance: Same as DTA 2602
• Height: 3U
• Dimensions: 655 × 580 × 200 mm
• Weight: Approx. 43 KG
