Description

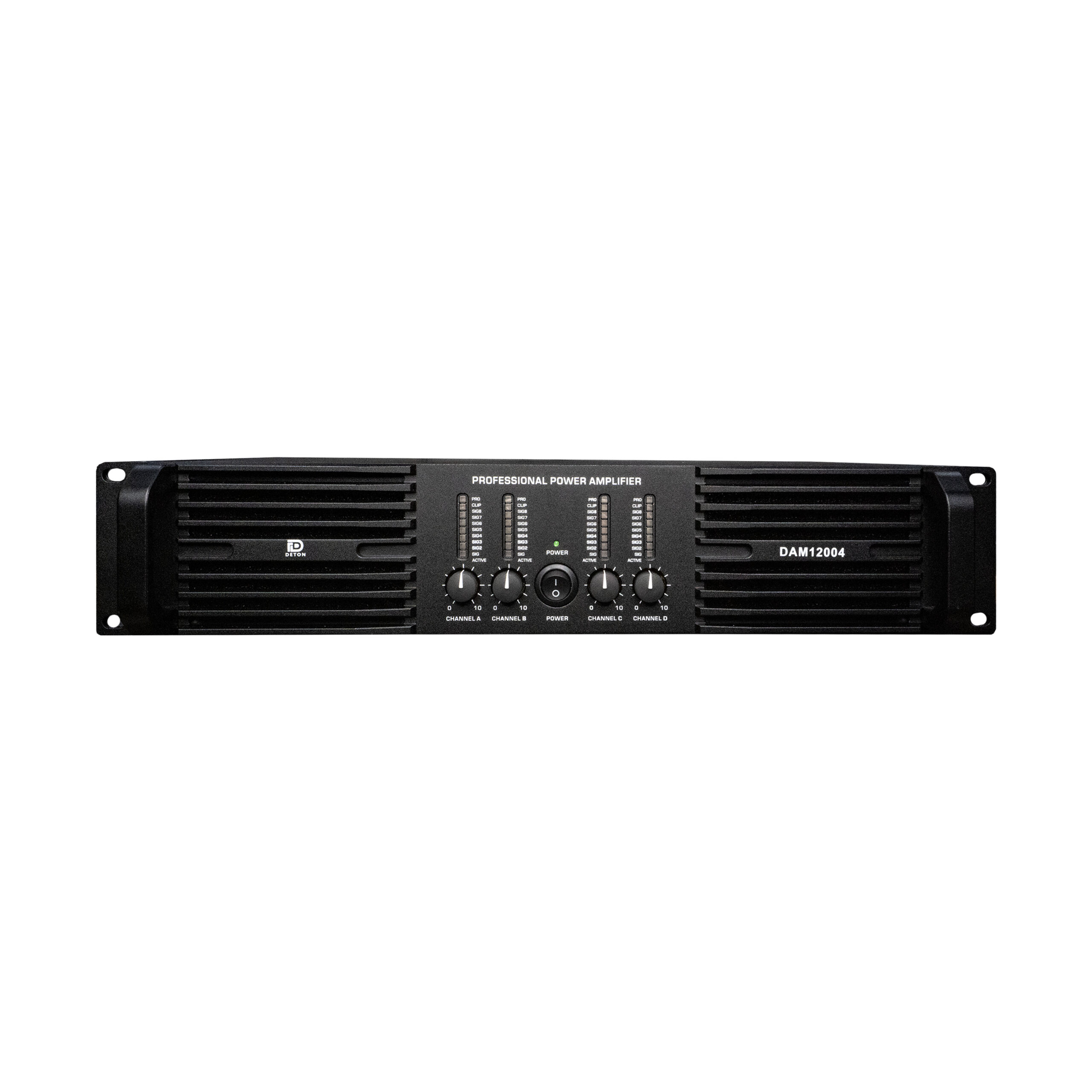

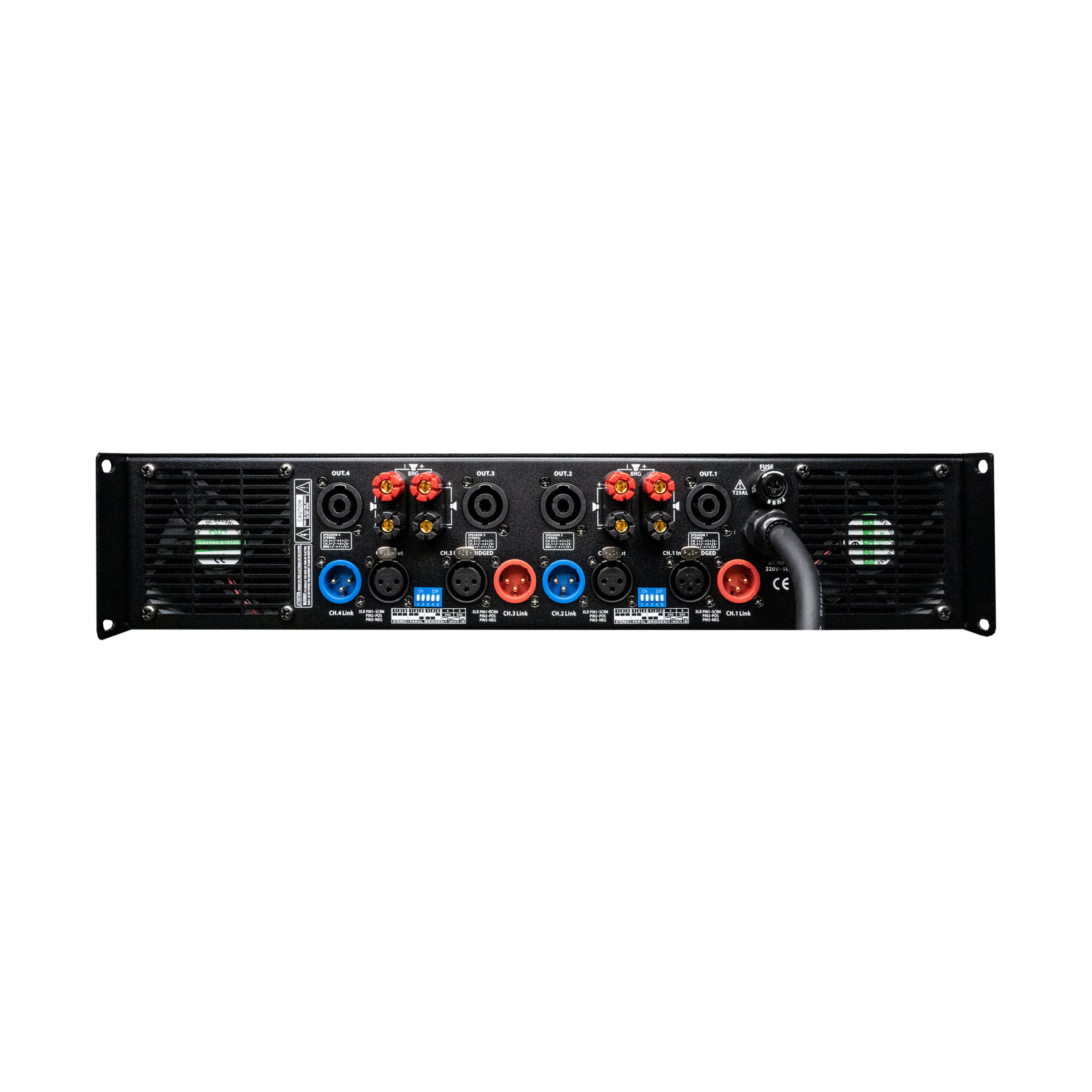

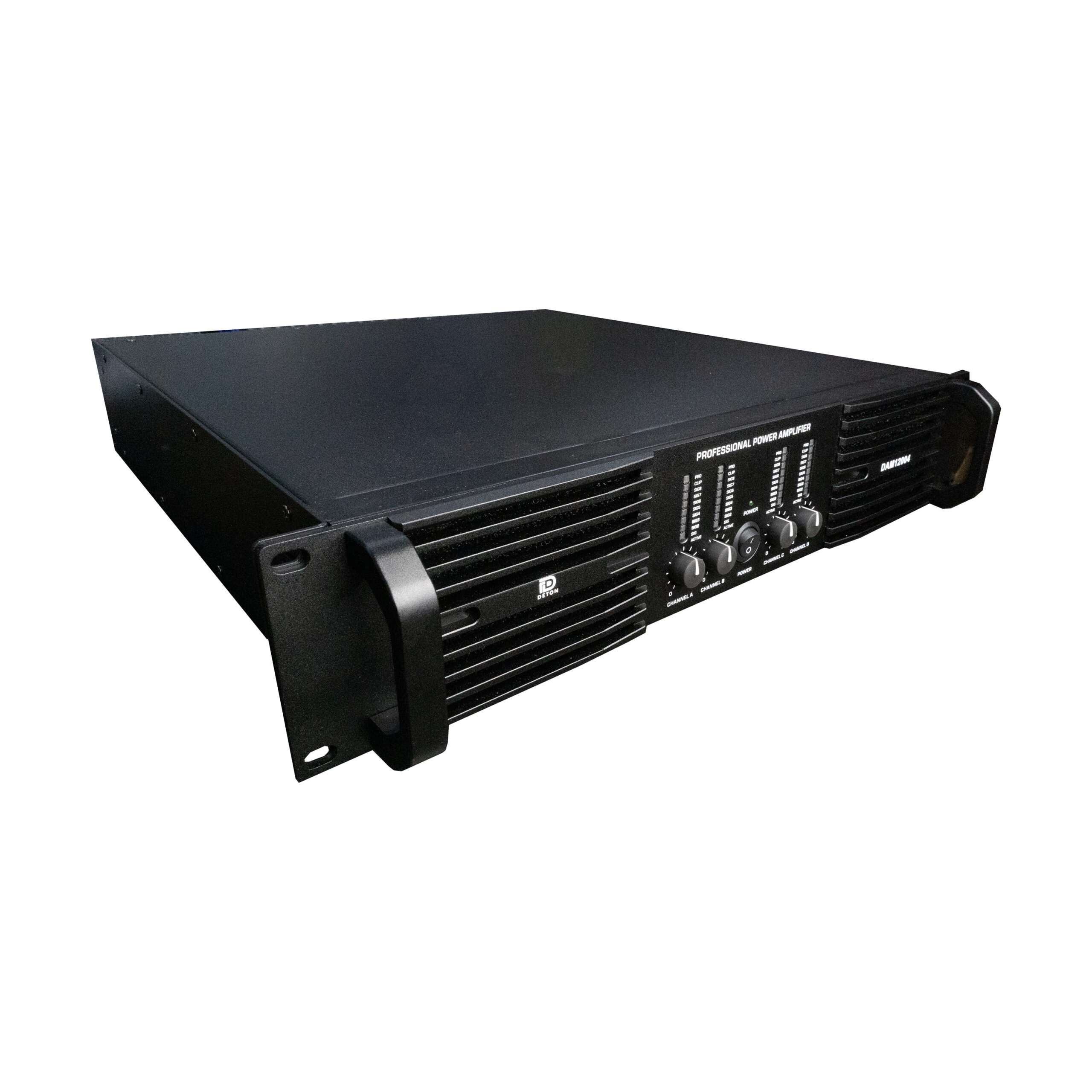

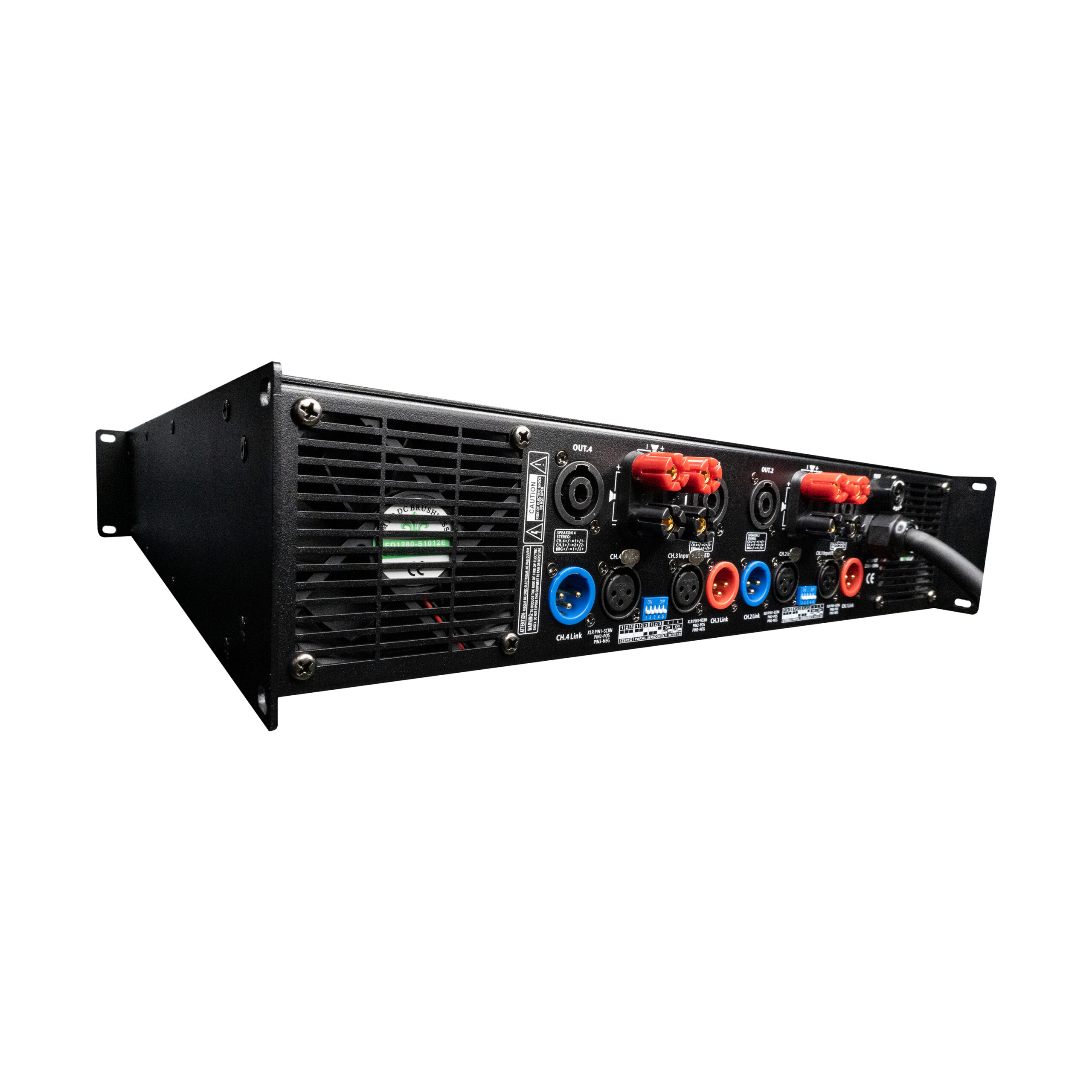

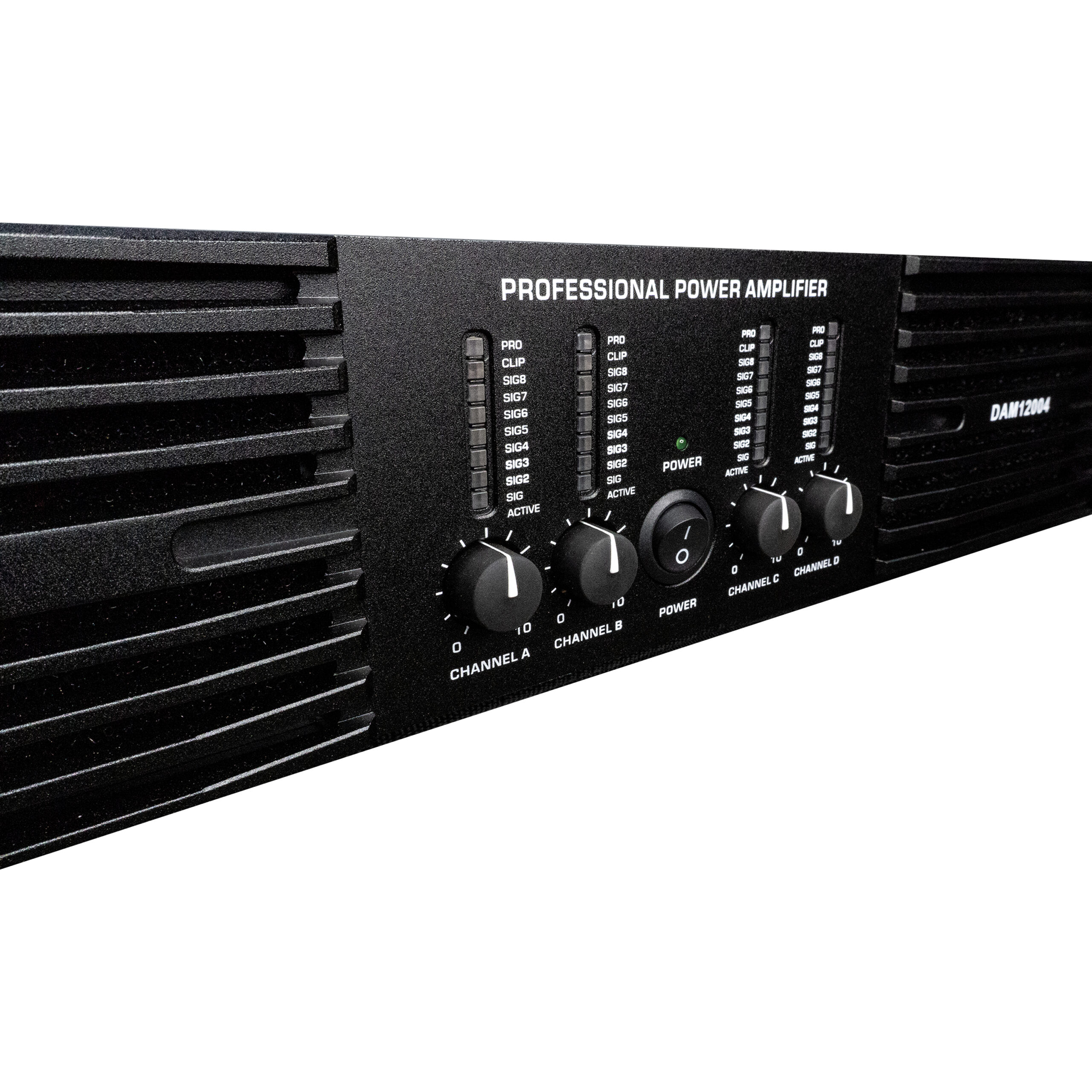

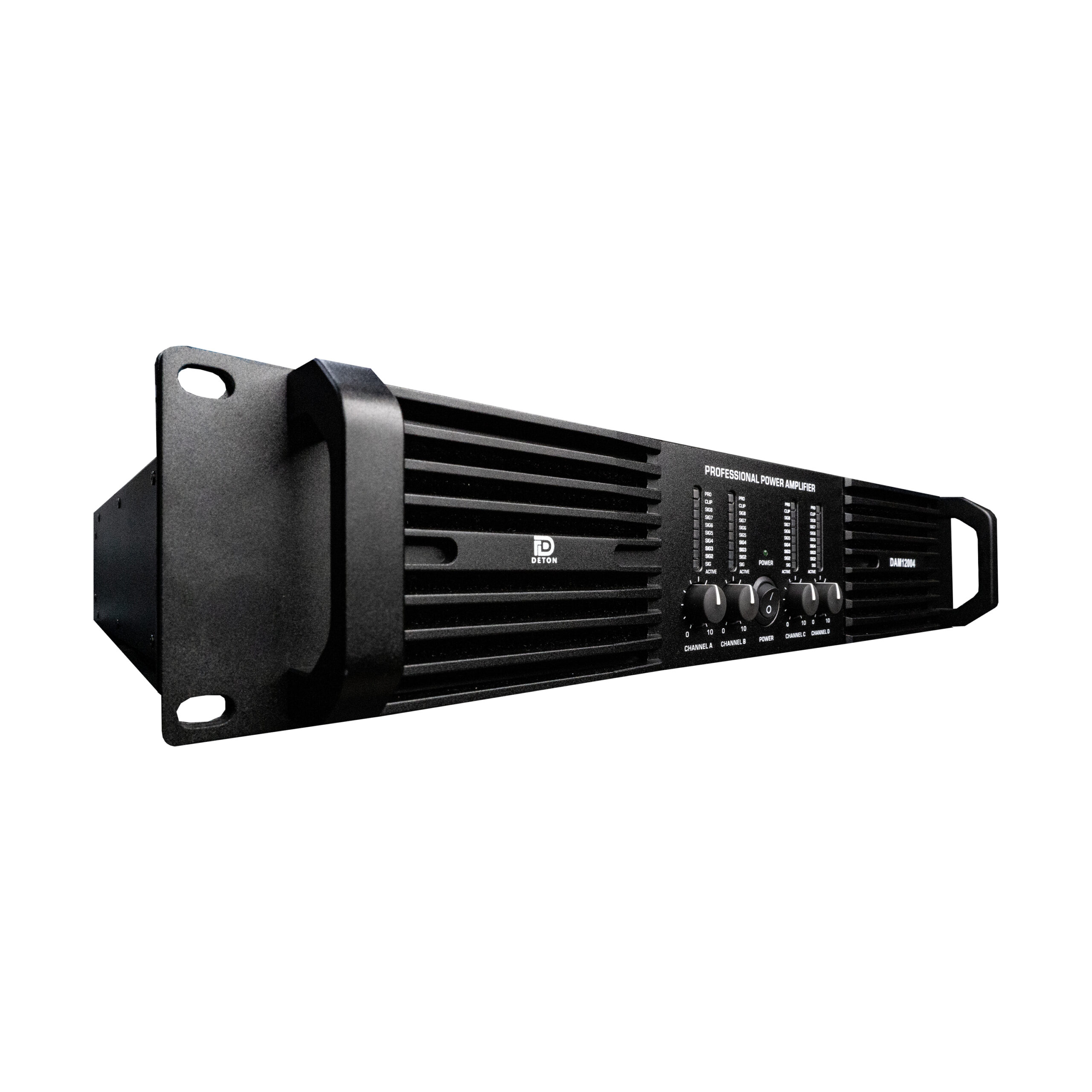

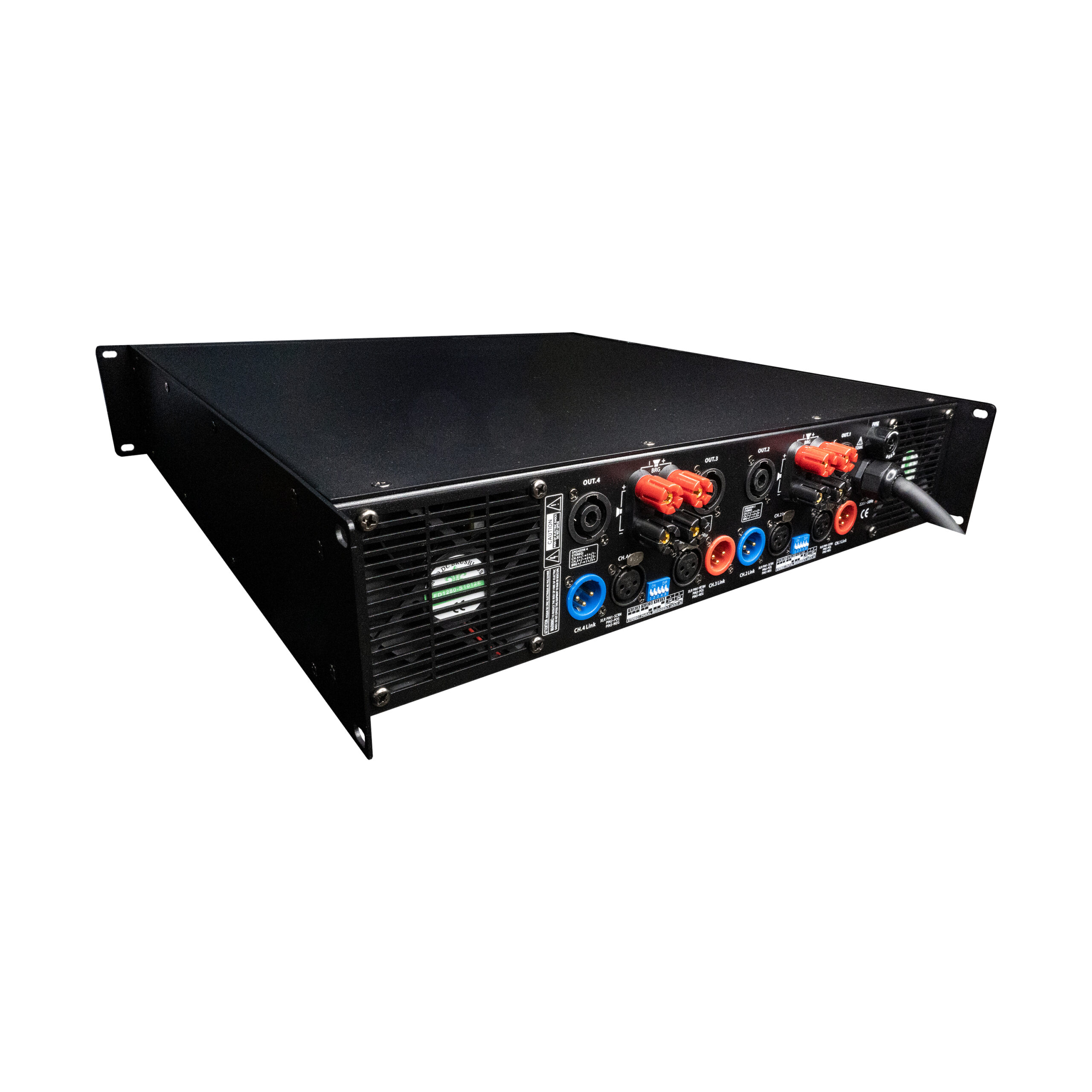

DETON DAM 12004 – 4 Channel Class H Power Amplifier

The DETON DAM 12004 is a high-performance 4 channel Class H power amplifier designed for professional sound reinforcement applications. Built for medium to large venues, this amplifier delivers powerful output, efficiency, and reliability for live events, clubs, and touring setups.

Equipped with a pure copper heavy-duty toroidal transformer and high-quality electronic components, the DAM 12004 ensures consistent and stable performance. The Class H circuit design improves efficiency while maintaining excellent audio clarity.

With advanced heat dissipation and four cooling fans, along with multiple protection systems, this amplifier is engineered for long-duration operation with minimal risk of failure.

Key Features

• 4 channel Class H professional power amplifier
• High power output up to 4×1800W
• Pure copper toroidal transformer for stable performance
• Efficient Class H circuit design
• Multiple protection systems for safe operation
• Four cooling fans for enhanced heat management
• High damping factor for improved speaker control
• Ideal for line array and stage monitor applications

Technical Specifications

• Model: DAM 12004
• Channels: 4 Channel Class H
• Frequency Response: 5 Hz – 50 kHz (±0.5 dB)
• Power Output:
  • 8Ω Stereo: 4 × 1200W
  • 4Ω Stereo: 4 × 1800W
  • 8Ω Bridge Mode: 2 × 3600W
• THD+N: <0.05% @ 8Ω (1/3 Power)
• S/N Ratio: >99 dB
• Damping Factor: >400
• Input Sensitivity: 0.775V / 1.0V / 1.4V
• Cooling: 4 High-Speed Fans
• Height: 2U
